Introducing 'ta', a The Archive-compatible Zettelkasten exploration tool for coding agents

ctietze

ta is a The Archive-like search command-line tool for your Zettelkasten.

Install from https://codeberg.org/ctietze/ta by downloading the tar compressed binary, or the installer .pkg file -- your choice!
(GitHub Mirror at our organization https://github.com/Zettelkasten-Method/ta )

Its intended use is to help with scripting, but also with coding agents (Claude, Codex, Gemini, Grok, Cursor, AMP, ...) to browse your notes.

Command-Line Interface

The command-line tool is simple enough and self-documenting for agents to fiddle with it:

$ ta
OVERVIEW: Zettelkasten retrieval CLI for coding agents.

EXAMPLES:
  Find notes by tag, expand 1 hop along wiki-links:
    ta search --tag learning --depth 1

  AND-combine predicates (tag + phrase + whole word):
    ta search --tag thinking --phrase "second-order" --word inversion

  Positional phrase shortcut:
    ta search "mental models" --depth 2

  Tag-only convenience:
    ta tag thinking --depth 2

  Print one or more notes (frontmatter + raw markdown):
    ta show "202503091430 Mental Models.md"

Archive path resolution (highest precedence first):
  1. --archive PATH  — flag on a subcommand (search, tag, or show)
  2. TA_DIR  — environment variable
  3. archive: PATH   — key in ~/.config/ta/config.yaml

USAGE: ta <subcommand>

OPTIONS:
  --version               Show the version.
  -h, --help              Show help information.

SUBCOMMANDS:
  search                  Search the Zettelkasten with AND-combined predicates.
  tag                     Search for notes carrying a specific hashtag (convenience for 'search --tag').
  show                    Print the full body of one or more notes.

  See 'ta help <subcommand>' for detailed help.

Agent Skills

The real value for users of The Archive is in agent skills. You already have the app, why deal with an inferior experience But agents don't so they'll benefit.

The repository contains copy-paste-able agent skills in the canonical format of https://agentskills.io/

Find the list here for your convenience:
https://codeberg.org/ctietze/ta/src/branch/main/docs/skills

LLMs and coding agents by extension are good for coming up with similar word searches, and the skills are meant to trigger this capability; see the deep research example below.

Fiddle with the skills, or write your own ones; there's no reason to be precious about these Markdown files. I'm experimenting with the ones I have for a while and report back and invite you to do so, too!

ctietze

Deep research examples

Some technical connections

Here's a test run dumped from Claude for deep research my zk for RAG and vector db's before I renamed the tool from zk-llm to ta, hence the weird names in the bash commands:

❯ deep research my zk for RAG and vector db's

⏺ Skill(zk-llm-deep-research)
  ⎿  Successfully loaded skill

⏺ I'll start with a broad search to find seed notes on RAG and vector databases.

⏺ Bash(swift run zk-llm search "RAG" --depth 1 2>&1 | tail -80)
  ⎿  [0/1] Planning build
     Building for debugging...
     [0/3] Write swift-version--6CDFB4424A1E79B2.txt
     … +26 lines (ctrl+o to expand)

⏺ Bash(swift run zk-llm search "vector" --depth 1 2>&1 | tail -80)
  ⎿    snippet: "as a result. (stdin to file) Mermaid, graphviz.  LaTeX for
      vector renditions of formulae.   There could be more use cas"
       tags: []
     … +58 lines (ctrl+o to expand)

⏺ Bash(swift run zk-llm search "embedding" --depth 1 2>&1 | tail -80)
  ⎿    snippet: "Look at Backlinks[[202503100826]] and especially structure
     s embedding the note you change to make sure that  the link co"
       tags: [zettelkasten, api]
     … +60 lines (ctrl+o to expand)

⏺ Good — I've found the hub notes. Let me read the core ones and look for
  adjacent concepts like hybrid search.

⏺ Bash(swift run zk-llm show "202603280645 Zettelkasten and RAG.md"
      "202603280646 RAG Retrieval-Augmented Generation.md" "202603280655 RRF
      Reciprocal rank fusion.md" 2…)
  ⎿  Building for debugging...
     [0/3] Write swift-version--6CDFB4424A1E79B2.txt
     Build of product 'zk-llm' complete! (0.13s)
     … +90 lines (ctrl+o to expand)

⏺ Bash(swift run zk-llm tag rag --depth 2 2>&1 | tail -60)
  ⎿  Building for debugging...
     [0/3] Write swift-version--6CDFB4424A1E79B2.txt
     Build of product 'zk-llm' complete! (0.12s)
     … +26 lines (ctrl+o to expand)

⏺ Let me quickly check the BM25 and tf-idf notes since they're referenced often.

⏺ Bash(swift run zk-llm show "202412071858 Search ranking with tf-idf  term
      frequency -- inverse document frequency.md" "202412071908 BM25 search
      ranking.md" 2>&1 | ta…)
  ⎿  Building for debugging...
     [0/3] Write swift-version--6CDFB4424A1E79B2.txt
     Build of product 'zk-llm' complete! (0.12s)
     … +34 lines (ctrl+o to expand)

⏺ I have enough to synthesize. No standalone "vector database" note — your
  thinking treats vectors as one retrieval mechanism among several.

  Your thinking on RAG and vector databases

  The cluster is small and intentional — five notes, written mostly in late 2024
   and March 2026, that frame RAG as an architectural pattern and vector search
  as one pluggable retrieval option inside it rather than the defining feature.
  Three themes:

  1. RAG as a three-stage architecture, with retrieval as the pluggable middle.
  - 202603280646 RAG Retrieval-Augmented Generation.md — defines the indexing →
  retrieval → generation pipeline, and explicitly separates the mechanism from
  the architecture. Vector embeddings are the common choice, but lexical
  (tf-idf, BM25, SQLite FTS5) "can serve as the retrieval backend."
  - You note the vector trade-off directly: higher compute, reduced
  debuggability — in exchange for cross-lingual / semantic hits ("knowledge
  cycle" matching "Wissenszyklus").

  2. Hybrid search, fused by RRF, is the production answer.
  - 202603280655 RRF Reciprocal rank fusion.md — you chose RRF because it
  sidesteps the score-normalization problem (BM25 unbounded, cosine 0–1) by
  ranking-only fusion. The k=60 dampening makes it so a document has to appear
  across methods to win. This is a quietly strong claim: you don't think vector
  search alone is enough.
  - 202412071908 BM25 search ranking.md and 202412071858 … tf-idf.md — the
  lexical half of hybrid. You keep the older Zac Romero (EmacsConf 2024) lineage
   alive here, which is why your RAG notes reach for BM25 as a first-class peer
  to embeddings.

  3. The Zettelkasten/RAG mapping — and where each has blind spots.
  - 202603280645 Zettelkasten and RAG.md is the synthesis hub. You draw a table
  aligning atomicity ↔ chunking, tags ↔ lexical index, links ↔ graph retrieval,
  structure notes ↔ parent-document retrievers, synthesis ↔ generation, GIGO ↔
  garbage retrieval.
  - Your sharpest claim lives here: hand-curated structure notes encode
  intentionality that embedding similarity cannot replicate. The inverse is
  equally honest — vector search finds unlinked cross-cluster connections a
  Zettelkasten has no edge for. You even propose the experiment: embed
  everything, query with vector search, diff against structure-note traversal.
  The delta is the research question.

  The thread connecting all three: you treat vector similarity as a complement,
  not a replacement — for lexical ranking (via RRF), and for human-authored
  links (via the ZK↔RAG mapping). The consistent move is skepticism toward any
  single retrieval signal.

  Gaps worth noting: no standalone note on vector databases as infrastructure
  (FAISS, pgvector, HNSW, chunking strategy, embedding model choice). If you
  want one, 202603280646 is the natural parent to link from.

✻ Crunched for 1m 7s

Higher-level stuff

Another example for deep research my zettelkasten for connections of software architectute and Zettelkasten patterns

❯ deep research my zettelkasten for connections of software architectute and
  Zettelkasten patterns

⏺ Skill(ta-deep-research)
  ⎿  Successfully loaded skill

⏺ Bash(ta --help 2>&1 | head -50)
  ⎿  OVERVIEW: Zettelkasten retrieval CLI for coding agents.

     EXAMPLES:
     … +25 lines (ctrl+o to expand)

⏺ Bash(ta search "software architecture" --depth 1 2>&1 | head -100)
  ⎿  - ref: "201606161929 ReSwift doesn't impose architectural constraints.
     md"
       title: "ReSwift doesn't impose architectural constraints"
     … +45 lines (ctrl+o to expand)

⏺ Bash(ta search --phrase "Zettelkasten" --phrase "software" 2>&1 | head -80)
  ⎿  - ref: "201009241818 Introducing Notational Velocity with MultiMarkdow
     n support.md"
       title: "Introducing Notational Velocity with MultiMarkdown support"
     … +108 lines (ctrl+o to expand)

⏺ Bash(ta search --phrase "pattern language" --depth 1 2>&1 | head -80)
  ⎿  - ref: "202501301159 § Pattern Language for Zettelkasten.md"
       title: "§ Pattern Language for Zettelkasten"
       snippet: "https://notes.andymatuschak.org/z79rMNNuLrUj6R8q1CXSpDm
     … +120 lines (ctrl+o to expand)

⏺ Bash(ta show "202501301159 § Pattern Language for Zettelkasten.md"
      "202209211603 § Zettelkasten for programmers.md" "202210081852 Complexity
      is required in code base…)
  ⎿  ---
     ref: "202501301159 § Pattern Language for Zettelkasten.md"
     title: "§ Pattern Language for Zettelkasten"
     … +391 lines (ctrl+o to expand)

⏺ Bash(ta show "202501301159 § Pattern Language for Zettelkasten.md" 2>&1 | tail
       -250)
  ⎿  - Solution: Write your notes so that they can be composed with other n
     otes into new texts, making each note a movable text fragment.
         - Movable type made it possible to assemble pages from smaller pie
     … +250 lines (ctrl+o to expand)

⏺ Bash(ta show "202209211603 § Zettelkasten for programmers.md" "202210081852
      Complexity is required in code bases and Zettelkasten alike.md" 2>&1)
  ⎿  ---
     ref: "202209211603 § Zettelkasten for programmers.md"
     title: "§ Zettelkasten for programmers"
     … +93 lines (ctrl+o to expand)

⏺ Bash(ta show "202404061208 Avoid implicit themes in your Zettelkasten.md"
      "202308011922 Locality of change in software.md" "202406132000 Structure
      vs Process in Zett…)
  ⎿  ---
     ref: "202404061208 Avoid implicit themes in your Zettelkasten.md"
     title: "Avoid implicit themes in your Zettelkasten"
     … +116 lines (ctrl+o to expand)

⏺ Bash(ta show "202210171300 Zettelkasten as API needs entry points.md"
      "202111291403 Gall's Law working systems always start simple.md"
      "202403141330 Zettelkasten tra…)
  ⎿  ---
     ref: "202210171300 Zettelkasten as API needs entry points.md"
     title: "Zettelkasten as API needs entry points"
     … +51 lines (ctrl+o to expand)

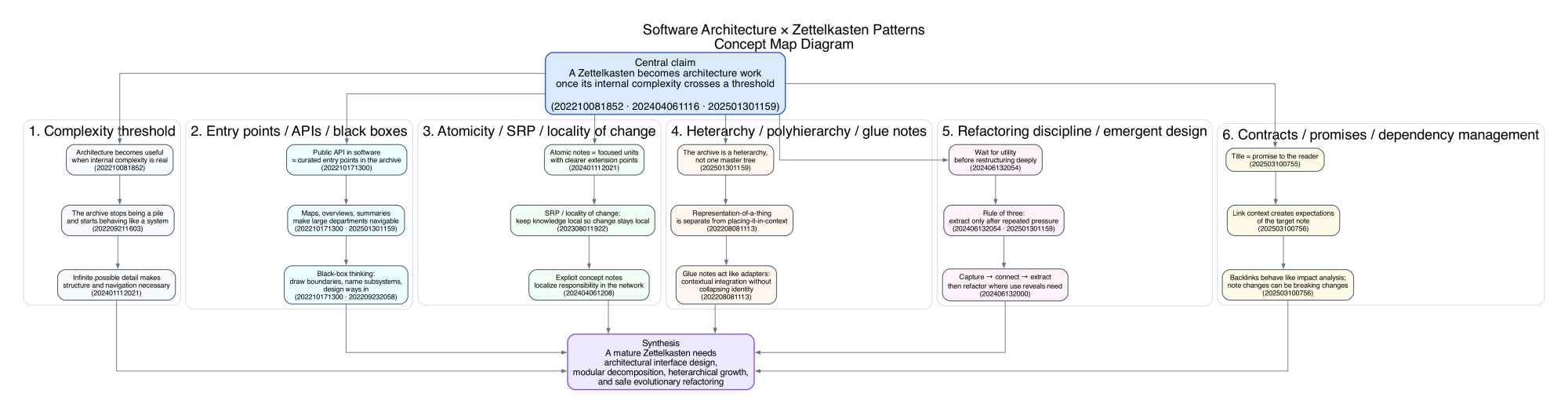

⏺ Software architecture ↔ Zettelkasten in your archive

  Your thinking on this maps cleanly to four themes, all orbiting one big
  synthesis note.

  1. Christopher Alexander is the explicit bridge.
  The centerpiece is a deliberately-constructed pattern language:
  - 202501301159 § Pattern Language for Zettelkasten.md — your largest §-note on
   the topic. Quotes Alexander 1977, organizes Zettelkasten patterns
  largest-to-smallest (Zettelkasten → Departments → Structures → Notes → Content
   → Language → Technology), and lifts pattern names straight from software:
  "Single Responsibility, Separated Concerns", "Boy Scout Rule", "Immutable
  Storage", "Rule of Three", "Algorithmic Solutions", "Signal vs Noise Ratio".
  - 202503090539 Cockburns medical pattern language metaphor components.md —
  Cockburn's Patterns of Project Management as another import of Alexander's
  grammar.

  2. Software antipatterns port to Zettelkasten antipatterns.
  - 202404061208 Avoid implicit themes in your Zettelkasten.md — explicitly maps
   the "incidental data structure" programming antipattern onto your
  Zettelkasten; proposes "Concept-Free Note-Taking" by analogy to Concept-Free
  Programming. Heuristic: lack of an address is an indicator the idea isn't
  expressed directly.
  - 202308011922 Locality of change in software.md → reused as the structural
  basis for "Single Responsibility, Separated Concerns" in the pattern-language
  note. SRP is about change, not essence; atomicity of a Zettel is the
  knowledge-system analogue.

  3. Structure/Process as a unifying principle across both.
  - 202209232058 Struktur und Prozess von Strukturen und Prozessen in der
  Programmierung.md — treats Structure×Process as a cross-product applicable to
  code (static/runtime, module boundaries shifting over coding time) and equally
   to knowledge work.
  - 202406132000 Structure vs Process in Zettelkasten for Programmers.md —
  Atom/Molecule/Organism granularity (Zettel / Structure Note / Project), plus
  Rule-of-Three extraction before refactoring into a shared theme.
  - 202111291403 Gall's Law working systems always start simple.md — complexity
  evolves from a simple working seed, applied to both codebases and
  Zettelkästen.

  4. Zettelkasten as black-box software system.
  - 202210171300 Zettelkasten as API needs entry points.md — departments are
  black boxes; structure notes are published API; readers (future-you) interact
  through curated entry points.
  - 202209211603 § Zettelkasten for programmers.md — the programmer-facing hub.
  Ties it together: "Tame complexity like a programmer … Make implicit
  structures visible with structure notes, similar to extracting a service
  object."
  - 202210081852 Complexity is required in code bases and Zettelkasten alike.md
  — the one-liner version: you don't see benefits of a software architecture
  before the complexity crosses a threshold — same for a Zettelkasten.

  The connecting thread visible in the bodies: you treat the Zettelkasten as a
  long-lived software system. Alexander's pattern grammar
  (Context/Problem/Forces/Solution/Related) gives the shared formal vocabulary,
  and programming principles port because both must scale complexity
  sustainably: SRP ⇢ atomicity, locality of information ⇢ movable text
  fragments, immutability ⇢ stable addresses, boy-scout rule ⇢ malleable notes,
  Gall's Law ⇢ start simple and grow, black-box encapsulation ⇢ department entry
   points. The explicit claim in § Pattern Language for Zettelkasten is that the
   language itself is the deliverable — a shared vocabulary for people designing
   tools for thought.

  If you want to push further, two probes I did not follow: (a) 202308241058
  Concept-Free Programming.md paired with the antipattern note, and (b) the
  "Value Creation in Zettelkasten" / Feynman's Darlings chain from 202406132000,
   which looked like it connects to a product-engineering frame you haven't
  fully laid out yet.

✻ Worked for 1m 33s

Observations

One thing that sticks out is the limit to | head -80, limiting the output of searches to 80 lines where each search result takes up a couple of lines can easily miss details.

Ideas to improve this:

• adjust the skill to avoid introducing a limit
• change output to jsonl oneliners, so a limit of 80 would produce 80 results, which is better than ~20 or so you get now

That's probably Claude Opus 4.7 trying to be clever and save tokens 🤔

ctietze

Deep Research with GPT-5.4 High Thinking using pi

I really really really like the pi agent harness. It's barebones, but you just ask it to create the features you need, and then it happily augments itself. Malleable software! It's a joy to work with.

Same prompt as above, including the typo I just noticed now

 deep research my zettelkasten for connections of software architectute and Zettelkasten patterns

Since Anthropic killed Claude subscription access outside of their products, I'm using OpenAI here to test everything. The output export is super detailed in comparison to Claude's command line output by default, and GPT is much wordier without a harness making it summarize the findings. See below for the final result.

At the end, GPT-on-pi suggested to create artifacts from the results:

If you want, I can next turn this into one of these:

• a concept map
• a chronological evolution of this idea in your notes
• a short essay in your own voice with citations

I ordered all three suggestions (attached to this post for you to peek at). The concept map was just another Markdown file, so I then ordered a PNG via graphviz:

Let's just say that @Edmund's graphs look nicer

GPT-on-pi's rather long result

I dug through your archive around `software architecture`, `zettelkasten`, `pattern-language`, and `programming`, then read the main hub notes.

## Big picture

Your notes make a strong, repeated claim:

**A Zettelkasten becomes architecture work once it grows past a certain complexity threshold.**
At that point, the important questions stop being “how do I store notes?” and become:

- how do I expose good entry points?
- how do I keep concepts addressable?
- how do I localize change?
- how do I refactor structure without breaking the network?
- how do I balance hierarchy with cross-cutting connections?

That thread is very explicit in:

- `"202210081852 Complexity is required in code bases and Zettelkasten alike.md"`
- `"202210171300 Zettelkasten as API needs entry points.md"`
- `"202404061208 Avoid implicit themes in your Zettelkasten.md"`
- `"202501301159 § Pattern Language for Zettelkasten.md"`

## The main connection clusters

### 1. Complexity is the precondition for architecture
Your bridge note is `"202210081852 Complexity is required in code bases and Zettelkasten alike.md"`:

- software architecture only shows its benefits once a codebase is complex enough
- same for a Zettelkasten: you need enough internal complexity before “interesting things happen”

That idea gets picked up again in `"202209211603 § Zettelkasten for programmers.md"`:
- treat the archive like a growing knowledge garden
- “tame complexity like a programmer”
- nourish structures before expecting higher-order effects

So in your archive, **software architecture and Zettelkasten practice are parallel responses to emergent complexity**.

---

### 2. Entry points, APIs, and black boxes
One of your clearest cross-domain mappings is:

- **public APIs in software**
- **curated entry points in a Zettelkasten**

`"202210171300 Zettelkasten as API needs entry points.md"` says this directly:
- entry points are like published APIs into a module
- overviews/summaries/visualizations make large “departments” accessible
- the archive is too large to be practically accessible without curation

This pairs well with `"202404061116 § Software Architecture.md"`:
- architecture is constructing structures
- those structures constrain processes observable at runtime

And it connects to `"202209232058 Struktur und Prozess von Strukturen und Prozessen in der Programmierung.md"`:
- modules/black boxes statically bound the space of possible runtime behavior

So one of your strongest themes is:

**A mature Zettelkasten needs architecture-level interface design.**
Not every note should be an entry point, just like not every function should be public API.

---

### 3. Atomicity, SRP, and locality of change
You repeatedly map note design onto software modularity.

`"202404061208 Avoid implicit themes in your Zettelkasten.md"` frames hidden concepts as the note-taking equivalent of an anti-pattern:
- an implicit shared theme is like an incidental data structure
- if an idea has no address, it can’t be cleanly linked, named, or reasoned about

`"202308011922 Locality of change in software.md"` gives the software side:
- SRP means one reason to change
- information should be local, not smeared across modules

`"202401112021 Level of detail in Zettelkasten possibly infinite compared to publications.md"` gives the Zettelkasten side:
- atomic notes improve focus
- smaller units make extension points easier to find
- granularity determines what level of problem analysis is possible

`"202406132000 Structure vs Process in Zettelkasten for Programmers.md"` then formalizes this:
- atom = Zettel
- molecule = structure note
- organism = project
- process = capture → connect → extract

This cluster suggests your archive sees **atomicity as the Zettelkasten analogue of modular design**:
- SRP → one reason to change
- atomicity → one focus / one movable unit
- locality → explicit concepts live in one addressable place

---

### 4. Heterarchy instead of a single master hierarchy
Your notes reject the idea that a Zettelkasten should have one total top-down architecture.

`"202208081113 Polyhierarchy in Zettelkasten through glue notes.md"` is especially important:
- a note should be separated from its contextual embeddings
- representation-of-a-thing and hierarchy-placement are different concerns
- “glue notes” or adapters bring a thing into context

That is a very software-architectural move:
- core entity vs adapter layer
- object vs context
- module vs integration surface

`"202501301159 § Pattern Language for Zettelkasten.md"` develops this into:
- heterarchy, not strict hierarchy
- departments, highways, trails, entry points
- maps of content and formal relationships as navigational architecture

So your archive treats Zettelkasten structure less like a file tree and more like a **system of overlapping bounded contexts**.

---

### 5. Refactoring discipline: wait for utility, then extract
Your Zettelkasten patterns borrow software refactoring heuristics surprisingly directly.

From `"202406132054 Prinzip Warten auf Nützlichkeit bis man Strukturen ändert.md"`:
- wait for utility before deepening or restructuring
- don’t chase every rabbit hole
- connect this to the rule of three

From `"202501301159 § Pattern Language for Zettelkasten.md"`:
- “rule of three”
- “boy scout rule”
- malleable notes
- explicit themes
- pattern language as shared vocabulary

This means your archive does **not** treat structure as something fixed up front.
Instead, structure is something you:
- let emerge,
- observe under load,
- then refactor when repeated use proves utility.

That is basically architecture-as-evolution, not architecture-as-blueprint.

---

### 6. Links and titles behave like contracts
Another deep bridge is interface contract thinking.

`"202503100756 Contractual Obligation in note networks.md"` says:
- a note should not lie about its content
- in a link `A→B`, the link context in `A` creates an expectation of `B`
- changing `B` can violate the network contract

`"202503100755 Promise of the Note Title.md"` pairs title with promise/API.

That maps neatly to software architecture:
- link context ≈ caller expectation
- note title/content ≈ interface/implementation contract
- backlinks ≈ impact analysis

So your archive sees **note maintenance as dependency management**.

## Strongest synthesis

The clearest synthesis I see is this:

**Your Zettelkasten is treated as a software system for thought, and software architecture is treated as a pattern language for managing complexity, access, change, and meaning inside that system.**

More specifically:

- **Architecture** gives you:
  - interfaces
  - structure/process thinking
  - locality of change
  - refactoring discipline
  - contract awareness

- **Zettelkasten** gives you:
  - addressable ideas
  - heterarchical composition
  - movable/atomic units
  - emergent structure
  - long-term discoverability

And your notes increasingly merge them into one view:
**designing a note network is architectural work.**

## Best notes to revisit

If you want the tightest reading list on this connection, start with:

1. `"202210081852 Complexity is required in code bases and Zettelkasten alike.md"`
2. `"202210171300 Zettelkasten as API needs entry points.md"`
3. `"202404061208 Avoid implicit themes in your Zettelkasten.md"`
4. `"202308011922 Locality of change in software.md"`
5. `"202208081113 Polyhierarchy in Zettelkasten through glue notes.md"`
6. `"202406132000 Structure vs Process in Zettelkasten for Programmers.md"`
7. `"202501301159 § Pattern Language for Zettelkasten.md"`
8. `"202503100756 Contractual Obligation in note networks.md"`

If you want, I can next turn this into one of these:

- a **concept map**
- a **chronological evolution of this idea in your notes**
- a **short essay in your own voice with citations**

Andy

The LLM output here sounds to me like someone who knows @ctietze's thinking.

ctietze

I removed the link when editing my post by accident, here are the 3 artifacts in text form:

https://gist.github.com/DivineDominion/593e1f6b3412148617368e12f9a6121c

@Andy it does sound somewhat insightful and detailed, and well, it's wordy at least! Was a surprise to read this kind of output, because it's not in my Zettelkasten. And some (obvious in hindsight) connections aren't expressed as cleanly -- like how the similarity of a Zettelkasten and API design fit well with "not everything needs to be public" (in programming) and by conversion not every note needs to be an entry point in the Zettelkasten.

So far it's not a waste of time to use this, but GPT's tendency to be so verbose can quickly turn into getting tired of dealing with the output

ctietze

Deep research, same prompt, Mistral Vibe using devstral-2

Mistral is a EU provider of LLM services -- apparently heavily subsidized, as they're giving away access to their coding agent for free (!!!!) with some reasonable rate limits.

Mistral replies fast.

If you want to experiment with coding agents, I recommend to set up a Mistral account and then download the vibe CLI and use that for a taste.

---

Same prompt as above, including the typo:

 deep research my zettelkasten for connections of software architectute and Zettelkasten patterns

The reply:

Your Zettelkasten reveals **six deep connections** between software architecture and Zettelkasten patterns:

---

## 1. Complexity Threshold
Both systems require complexity to demonstrate architectural value.

> You don't see benefits of a software architecture before the complexity of the code base reaches a certain threshold. [...] Like a code base requires a certain complexity to show *complex behavior*, you need to write prose in a Zettelkasten for a while before you can judge if it can do complex stuff.
> — `202210081852 Complexity is required in code bases and Zettelkasten alike.md`

---

## 2. Hypertext as Unifying Metaphor
Both Zettelkasten and software are **interconnected hypertext networks**.

**Zettelkasten**: Three link types per Luhmann:
- Keyword references (generalization via tags)
- Explicit ID links (direct connections)
- Spatial hypertext (sequential: `52/7a4` → `52/7a5` → `52/7a6`)
  — `201105201217 Arten von Links im Zettelkasten.md`

**Software**:
> You have many interconnected pieces; you can follow trails through the code base, but cannot grasp everything at once, the way through the hypertext is up to you and also formative
> — `202401182137 Software as hypertext.md`

Both require navigation trails rather than static 2D diagrams: `202401182128 Diagrams don't reflect software.md`

---

## 3. Structure vs Process (Unifying Principle)
A meta-pattern that organizes thinking across both domains.

| Aspect | Software | Zettelkasten |
|--------|----------|--------------|
| **Structure** | Module boundaries, layered architecture | Note structure, index/structure notes |
| **Process** | Runtime behavior, state transitions | Note-taking workflow, idea evolution |
| **Structure of Structure** | Higher-level module partitioning | Department/entry point organization |
| **Process of Structure** | Evolution of codebase boundaries | Changing note relationships over time |

> The difference between structure and process is a unifying principle. [...] If you want to, you can see it everywhere
> — `202406131954 § Structure vs Process unifying principle.md`

Applied to Zettelkasten: `202406132000 Structure vs Process in Zettelkasten for Programmers.md`

Applied to programming: `202209232058 Struktur und Prozess von Strukturen und Prozessen in der Programmierung.md`

---

## 4. Modularity: Black Box Thinking
**Software**: The black box principle unifies module design.

> Treating units at face-value of their abstraction, characterized by: boundary, input, output. Modules on all levels: functions, classes, services.
> — `201610081507 Black Box unifies the whole of software modelling in modules.md`

**Zettelkasten**: Notes as black boxes.

> A note should be a self-contained unit with clear boundaries, inputs (what it references), and outputs (what it enables).
> — Implicit in linking patterns

Connected via: Layered software architecture relies on black box modules (`201610091107 Layered software architecture.md` links to black box)

---

## 5. Granularity Patterns: Atom/Molecule/Organism
A chemistry metaphor applied to both domains.

| Level | Zettelkasten | Software/Design |
|-------|--------------|-----------------|
| **Atom** | Single Zettel (one thought) | Function, SRP-compliant module |
| **Molecule** | Structure note (connects atoms) | Component, class, service |
| **Organism** | Project/writing output | Application, system |

> The chemistry metaphor of Atom/Molecule/Organism can be applied to focus on different levels of granularity. [...] In a Zettelkasten, viewed as a tool for thinking, operates on the unit of Zettel. A Zettel can be an Atom, it can be a structure note (Molecule), or a writing project (Organism).
> — `202403131049 Atom, molecule, organism metaphor of granularity.md`

Also connects to:
- `202308092113 One thought per unit of writing is atomicity.md` (SRP for notes)
- `201302161820 Single Responsibility Principle.md` (SRP for code)

---

## 6. Linking Dependencies
**Zettelkasten**: Explicit linking enables emergence.

> Verweisung auf andere Zettel durch explizite Links, über deren ID
> — Luhmann's three link types, `201105201217 Arten von Links im Zettelkasten.md`

**Software**: Dependency types mirror link types.

| Zettelkasten Link | Software Equivalent |
|-------------------|---------------------|
| Tag-based | Interface/abstract type (generalization) |
| Explicit ID link | Direct import/dependency |
| Spatial (sequential) | Module layering (ordered dependencies) |

> Each layer has a clear meaning. [...] The dependency between layers is strictly ordered. Criss-crossing dependencies invite sloppy separation.
> — `201610091107 Layered software architecture.md`

---

## 7. Living Systems
Christopher Alexander's architecture theory applies to both:

> These centers are more living, or less living. [...] recursive, perceptible entities [...] its "livingness" depends on subsumed centers
> — `202501301155 Alexander's architecture entities are differentiate on degrees of livingness.md`

Parallel to Zettelkasten: notes gain "livingness" through recursive connection, a network of notes is more living than isolated notes.

---

## 8. Practical Synthesis: Zettelkasten as Programmer's Tool

**Lab Notebook**:
> As a programmer, I use my Zettelkasten like a laboratory notebook [...] I take meticulous note of observations: stack traces, side effects, inputs and outputs.
> — `202209211601 Zettelkasten as lab notebook for programmer.md`

**Compost Metaphor**:
> The Zettelkasten is your compost pile. The germination process is how ideas processed into pieces of knowledge are available for re-combination.
> — `202210011144 Compost everything you learn in your Zettelkasten.md`

**Complexity Management**:
> Knowledge networks require pruning instead of graphing. [...] Think globally, link locally.
> — `20230317 Knowledge networks require pruning instead of graphing.md`

---

## Architectural Pattern Mapping

| Software Architecture Pattern | Zettelkasten Equivalent |
|--------------------------------|------------------------|
| Layered Architecture (`201610091107`) | Note hierarchies ( departments, topics) |
| Black Box / Module (`201610081507`) | Self-contained notes |
| SRP / Cohesion (`201302161820`) | One thought per note |
| Dependency Inversion (`201305031947`) | Bidirectional linking (backlinks) |
| Hexagonal/Ports & Adapters (`201407071042`) | Entry points with clear interfaces |
| Anti-Corruption Layer (`202202091507`) | Translation notes between domains |

---

## Synthesis
Your thinking reveals **isomorphism**: both software systems and Zettelkasten are:
- **Hypertext networks** requiring navigation not visualization
- **Modular systems** where boundary design matters
- **Living systems** that evolve through structured complexity
- **Granular hierarchies** operating at multiple levels of abstraction

The strongest explicit connection: **Complexity is the catalyst** that makes architecture (in both code and notes) worthwhile.

Want to explore any specific theme deeper?
